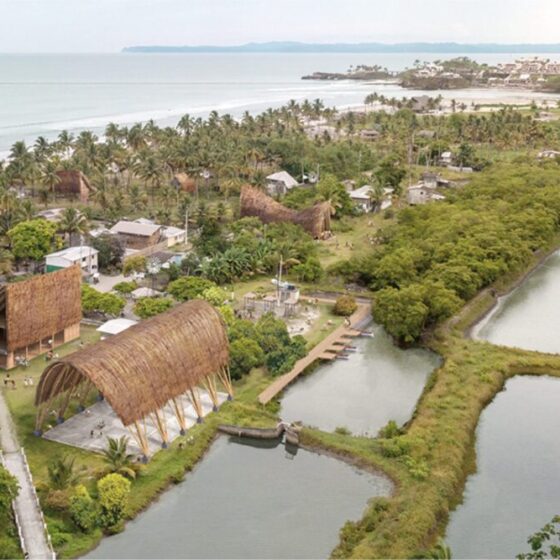

El proyecto se encuentra en la isla Portete, en Esmeraldas. Es una isla de 6 por 2 km que tiene el Océano Pacífico al oeste y reservas de manglares al este. La isla fue afectada por el terremoto de 2016, desplazando a 80 familias a un complejo de viviendas en tierra firme, ajeno a sus costumbres y sin condiciones térmicas adecuadas. Los materiales endémicos de la zona, como el bambú, la madera y la paja toquilla, fueron reemplazados por placas de zinc, bloques y concreto. Estos cambios han afectado el paisaje natural y el turismo, que es la principal fuente de ingresos para la comunidad.

Hemos estado trabajando durante un año con la comunidad para convertirla en una isla sostenible, con viviendas asequibles y decentes, equipadas con bajo impacto ambiental y que contribuyan al paisaje. Estas piezas utilizan materiales renovables de la región, gestión de residuos, energía limpia y la modernización de sistemas de construcción. Líderes comunitarios y técnicos se han involucrado en este proceso bajo el lema de «aprender haciendo». Hemos demostrado que los espacios públicos educan y se convierten en escuelas para capacitar a las personas, abrir nuevos campos de trabajo y promover la consolidación sostenible.

Se han construido 7 casas autosuficientes y se construirán nuevas infraestructuras utilizando catenarias de bambú, demostrando la adaptabilidad y flexibilidad del material para llevar a cabo proyectos que fortalezcan el turismo responsable y respondan a necesidades como un centro deportivo, una casa comunal, un muelle de manglares y una escuela-museo del conocimiento.

Metas de sostenibilidad

Elevación de lugares

Los elementos comparten el mismo lenguaje arquitectónico que responde al sistema de construcción de bambú y toquilla. Las infraestructuras son llamativas por su morfología, diseñada a partir de la técnica para lograr una mayor resistencia estructural. Las pendientes largas conectan los volúmenes con el paisaje natural que se mezcla entre las palmas. Cada elemento construido es autosuficiente e incluye sistemas de recolección de aguas subterráneas, tratamiento de aguas residuales mediante biodigestores, filtros biológicos y campos de infiltración. Se utilizan los vientos para bombear agua y generar energía limpia para cada infraestructura. La isla se concibe como un organismo vivo con sinergias entre su entorno y sus recursos.

Planeta saludable

El proyecto optimiza técnicas para lograr eficiencia sin descuidar la calidad ni la seguridad. Un conjunto de estrategias y detalles para reivindicar la construcción en bambú y toquilla con el objetivo de hacerla accesible y sostenible. El proyecto contempla la escuela-museo que potenciará la conservación del manglar, el cuidado de la fauna endémica protegiendo la anidación de tortugas en la zona, la gestión de residuos sólidos y líquidos para no contaminar el manglar y el autoabastecimiento de electricidad. Los componentes diseñados para la isla se convierten en una escuela para jóvenes que confían y valoran el material, los procesos y el cuidado de la flora y fauna de la isla.

Comunidades prósperas

Cada prototipo de vivienda permitió capacitar a hombres y mujeres técnicos en construcción, brindando otra opción de empleo en la isla y áreas circundantes. Este es un proyecto a largo plazo que tiene como objetivo demostrar que los materiales endémicos de la zona con sistemas vernáculos de la costa, más la modernización y la visión contemporánea, permiten la creación de espacios con gran proyección laboral y económica sin poner en peligro los ecosistemas naturales. El proyecto considera cada construcción como una escuela itinerante de conocimiento donde se expande el conocimiento sobre el tratamiento del agua, preservantes naturales y estructuras. Herramientas que permitirán a la comunidad reconstruir sus hogares de manera más sostenible y segura.

Economía viable

El turismo es el motor económico de la isla y se ha visto afectado por la falta de servicios y la destrucción de paisajes naturales durante la reconstrucción posterior al terremoto de 2016. Promover el turismo comunitario y responsable es la motivación de los habitantes para rescatar la isla, generando empleo en respuesta a las altas tasas de migración a ciudades vecinas. El cuidado de la isla se fomenta a través de las infraestructuras; las casas se abren para que los visitantes vivan la experiencia entre bambú y toquilla, aprendiendo de dónde se obtienen los materiales y el agua, y cómo se gestionan los residuos. La microeconomía local mejora mediante servicios en torno al paisaje natural y construido.

Project summary

The project is located on Portete island, in Esmeraldas. A 6 by 2 km island that has the Pacific Ocean to the west and mangrove reserves to the east. The island was affected by the 2016 earthquake, displacing 80 families to a housing complex on the mainland, alien to their customs and without adequate thermal conditions. The endemic materials of the area, such as bamboo, wood, and toquilla straw, were replaced by zinc plates, blocks, and concrete. These changes have affected the natural landscape and tourism, which is the main source of income for the community. We have been working for one year with the community to turn it into a sustainable island, with affordable and decent housing, equipment with low environmental impact, and a great contribution to the landscape. These pieces use renewable materials from the region, waste management, clean energy, and the modernization of construction systems. Community leaders and technicians have become involved in this process under the motto of “learning by doing”. We
have shown that public spaces educate and become schools to train people to open new fields of work and promote sustainable consolidation. 7 self-sustaining houses have been built and new infrastructures will be built using bamboo
catenaries, demonstrating the adaptability and flexibility of the material to carry out projects that strengthen responsible tourism and respond to needs such as a sports center, communal house, mangrove dock, and a museum-school of knowledge.

Sustainability Goals

Uplifting places

The elements have the same architectural language that responds to the construction system of bamboo and toquilla. The infrastructures are showy for their morphology which is designed from the technique to achieve greater structural resistance. The long slopes link the volumes to the natural landscape that blends in between the palm groves. Each built element is self-sustaining and includes groundwater collection systems, sewage treatment through biodigesters, biological filters, and infiltration fields. The winds are used to pump water and generate clean energy for each infrastructure. The island is conceived as a living organism with synergies between its environment and its resources.

Healthy planet

The project optimizes techniques to achieve efficiency without neglecting quality or safety. A set of strategies and details to claim the construction in Bambú and Toquilla with the aim of making it accessible and sustainable. The project contemplates the school-museum that will leverage the conservation of the mangrove, the care of endemic fauna protecting the nesting of turtles in the area, the management of solid and liquid waste so as not to contaminate the mangrove, and self-supply of electricity. The set of components designed for the island become a school for young people, girls and boys who trust and value the material, the processes and the care of the island’s flora and fauna.

Thriving communities

Each housing prototype allowed us to technical men and women in construction, giving another employment option on the island and the surrounding areas. This is a long-term project that aims to show that the endemic materials of the area with vernacular systems of the coast plus modernization and contemporary vision allow the creation of venues with great labor and economic projection without endangering the natural ecosystems. The project takes each construction as an itinerant school of knowledge where knowledge about water treatment, natural preservatives, and structure is expanded. Tools that will allow the community to rebuild their homes in a more sustainable and safe way.

Viable economics

Tourism is the economic engine of the island, and it has been affected by the lack of services and the destruction of natural landscapes from the reconstruction after the 2016 earthquake. Promoting community and responsible tourism is the motivation of the inhabitants to rescue the island, generating jobs in response to the high rates of migration to neighboring cities. The care of the island is encouraged by the infrastructures, the houses are opened so that visitors have the experience of living between bamboo and toquilla, learning where materials and water are obtained and how waste is managed. The local micro-economy improves through services around the natural and built landscape.

Información general

Main author(s): Felipe Donoso, Carolina Rodas, Carla Chávez Colaboradores: Estefania Bautista Ilustraciones: Pinxcel Fotografias: Andres Villota
